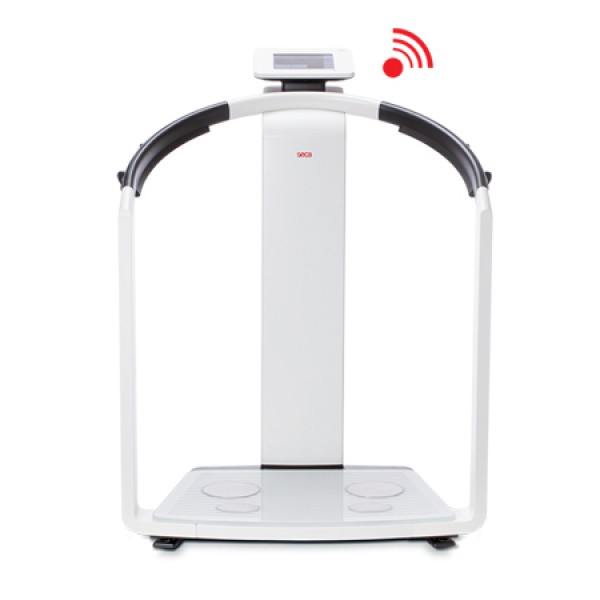

Seca515 mBCA
A body composition analyzer that delivers medically precise results.
The seca mBCA 515 is a medical Body Composition Analyzer, which is ideally adapted to the working conditions in hospitals and medical practices. After all, in order to obtain a truly meaningful Bioelectrical Impedance Analysis (BIA), we need to look beyond the many technical requirements. A faster and simpler way to ascertain body composition, e.g., body fat and water, also has to be ensured. For another, the measurement results have to be reproducible under normal clinical working conditions. These exact considerations went into the development of the seca mBCA 515.
Medically valid, medically precise, medically useful.
General
- Dimensions (WxHxD)976 x 1,251 x 828 mm
- Capacity 300 kgGraduation 50 g < 150 kg > 100 gWeight36 kg
- Display8.4" Touch-screen display, can be rotated 360°
- Power supply Power adapterVoltage 100 V – 240 VPower
- frequency 50 Hz – 60 HzCalibration class
- Interfaces seca 360° wireless technology, USB 2.0, EthernetCompatible
- printers seca 360° wireless, laser printer and inkjet printer via PC software seca analytics 115
Bioelectrical Impedance Analysis
- Measurement method : 8-point Bioelectrical Impedance Analysis
- Type of electrode : Stainless steel, three (3) pairs of hand electrodes, two (2) pairs of foot electrodes
- Measurement frequencies 1; 1.5; 2; 3; 5; 7.5; 10; 15; 20; 30; 50; 75; 100; 150; 200; 300; 500; 750; 1,000 kHz
- Measurements Impedance : (Z), Resistance (R), Reactance (Xc), Phase angle (φ)
- Phase angle measurement range : 0° to 20°
- Measurement range Impedance : 10 Ω to 1,000 Ω
- Measurement segments : Right arm, left arm, right leg, left leg, right half of body, left half of body, torso
- Measurement current : 100 μ
- ΑMeasurement time : All modes at frequencies of 5 kHz and 50 kHz (max. 20 seconds)All modules at all frequencies (max. 90 seconds)
Information
This device is equipped with a wireless module which permits wireless transmission of measurements for analysis and documentation purposes.Data can be transmitted to the following devices:
- seca 360° wireless printer
- PC with seca USB wireless module . The device can receive data from the following devices
- seca measuring rods and measuring stations in the seca 360° wireless System
- PC with seca USB wireless module
