Seca525 mBCA
medical Body Composition Analyzer
The new compact class for mobile body composition analysis.
Expertly developed for mobile application.
The entire development had one goal: to make mobile bioimpedance measurement as efficient as possible through low weight, the most precise measurement technology and easy handling.

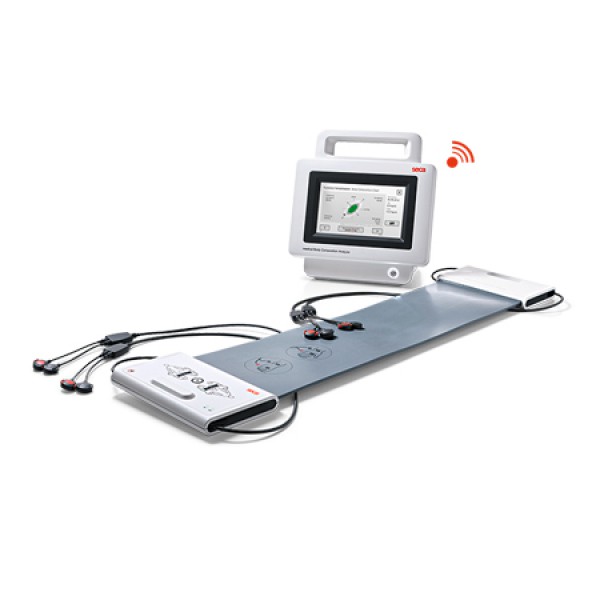

The seca mBCA 525 is one of a kind in terms of function and performance. The unique measuring mat measures all of the required parameters such as fat mass, muscle mass and body water in a fully self-sufficient way. The short cables simplify working. The mat is also automatically linked to the touchscreen monitor by Wi-Fi, which can also be deactivated if required. The large memory of the monitor has sufficient capacity for over 100,000 measurements. This enables a large number of patients and courses of therapy to be reliably documented for years. Furthermore, measurements can be reliably carried out regardless of location in hospitals or in private practices. Its light weight, practical handle and optional mobile stand with a basket for patient files and accessories guarantees maximum mobility.
General
- Dimensions (WxHxD) : 252 x 262 x 230 mm / 9.9 x 10.3 x 9.1“
- Weight : 3 kg / 6.6 lbs
- Display : 7" touchscreen-display
- Power supply : power adapter, rechargeable batteryVoltage100 V – 240 VPower
- frequency : 50 Hz – 60 Hz
- Interfaces : Wi-Fi, Ethernet, USB 2.0, seca 360° wireless technology
- Compatible : printers laser printer and inkjet printer via PC software seca analytics 115
- Medical device class : IIa
Bioelectrical Impedance Analysis
- Measurement method : 8-point Bioelectrical Impedance Analysis
- Type of electrode : adhesive electrodes (PVC-free)
- Measurement frequencies : 1; 2; 5; 10; 50; 100; 200; 500 kHz
- Measurements Impedance : (Z), Resistance (R), Reactance (Xc), Phase angle (φ)
- Phase angle measurement range : 0° to 20°
- Mess Measurement range : Impedanceanz10 Ω to 1.000 Ω
- Measurement segments : Right arm, left arm, right leg, left leg, right half of body, left half of body, torso
- Measurement current :100 μΑ
- Measurement time : 30 seconds
Information
The patient monitor is equipped with seca 360° wireless technology and can receive data from the following devices:
- seca scales in seca 360° wireless system (weight)
- seca height measuring systems in seca 360° wireless system (height)
- seca measuring stations in seca 360° wireless system (weight and height)
Included with
Monitor, measuring mat, PC software seca analytics 115 (one workstation license), power adapter, electrode starter set.
