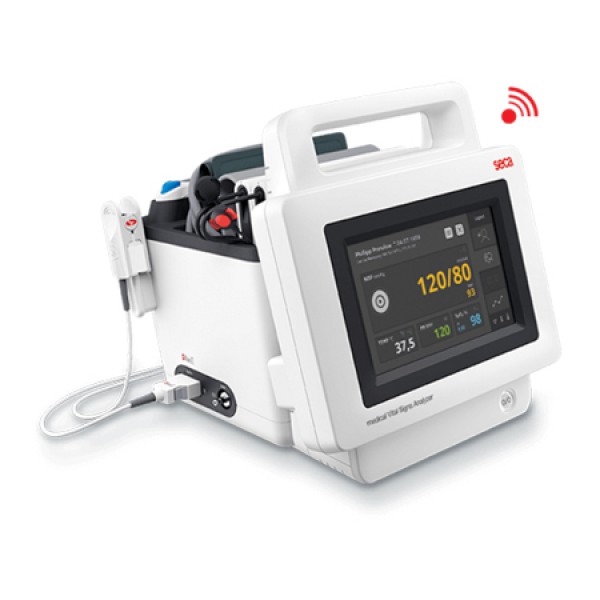

Seca535 mVSA
General
- Dimensions : (WxHxD)252 x 262 x 278 mm
- Weight: In-ear thermometer version 3.7 kg
- Display : type7" touchscreen display
- Power supply : Built-in power adapter, internal rechargeable lithium-ion battery
- Medical device : classIIa
- Interfaces : Wi-Fi, Ethernet, USB 2.0, seca 360° wireless technology
- Compatible : printersConventional laser and ink jet printers via the seca analytics 115 PC software
Bioelectrical impedance analysis
- Measurement method : 8-point Bioelectrical Impedance Analysis
- Measurement frequencies : 1; 2; 5; 10; 50; 100; 200; 500 kHz
- Measurement segments : 100 μΑ
- Measurement currentImpedance : (Z), Resistance (R), Reactance (Xc), Phase angle (φ)
- Measurement time : 30 seconds
Blood pressure measurement
- Measuring procedure : oscillometric
- Measurement range : pSYS: 25 – 280 mmHg; pDIA: 10 – 220 mmHg; pMAP: 15 – 260 mmHg
- Measurement accuracyAccuracy of deflation measurement:Measurement accuracy – mean deviation < 1.7 mmHg Measurement accuracy – standard deviation < 5.6 mmHgInflation measurement:Measurement accuracy – mean deviation <1.19 mmHgMeasurement accuracy – standard deviation < 3.48 mmHgMeasurement certainty Excess pressure limit 300 mmHg; automatic pressure release at 330 mmHgMeasurement timeNormal: 15 – 20 sec / max. 90 sec (adults)Pulse rate Range 30 – 240 BPM; accuracy ± 2 BPM
SpO2
- Measurement method : Pulse oximetry
- Measurement range (SpO2)SpO2 0.0 % to 100.0 %
- Measurement precision : (SpO2)SpO2 – resting (60 % – 100 %) ± 2 Arms;SpO2 – in motion (70 % – 100 %) ± 3 Arms
- Measurement range (PR)Pulse rate PR (Standard) 30 bpm to 240 bpm;Pulse rate PR (Enhanced) 20 bpm to 300 bpm
- Measurement accuracy (PR)PR – resting ⦤ 2 bpm; PR – in motion n/a
